牧野慢走丝NC程序

734666448

牧野慢走丝NC程序

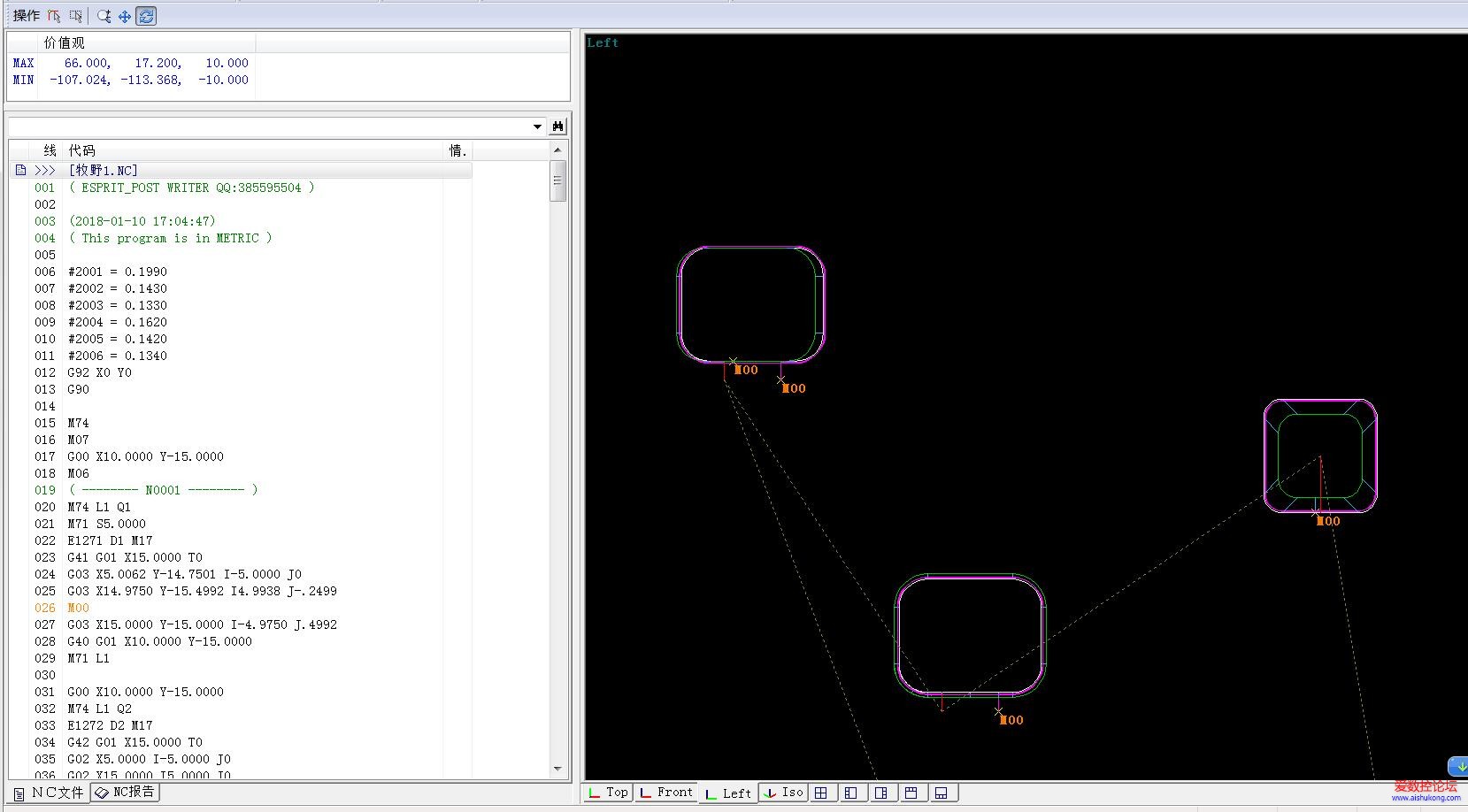

( ESPRIT_POST WRITER )

(2018-01-10 17:04:47)
( This program is in METRIC )

#2001 = 0.1990
#2002 = 0.1430
#2003 = 0.1330
#2004 = 0.1620
#2005 = 0.1420
#2006 = 0.1340
G92 X0 Y0
G90

M74
M07
G00 X10.0000 Y-15.0000
M06
( -------- N0001 -------- )
M74 L1 Q1
M71 S5.0000
E1271 D1 M17
G41 G01 X15.0000 T0
G03 X5.0062 Y-14.7501 I-5.0000 J0
G03 X14.9750 Y-15.4992 I4.9938 J-.2499
M00
G03 X15.0000 Y-15.0000 I-4.9750 J.4992
G40 G01 X10.0000 Y-15.0000
M71 L1

G00 X10.0000 Y-15.0000
M74 L1 Q2
E1272 D2 M17
G42 G01 X15.0000 T0
G02 X5.0000 I-5.0000 J0
G02 X15.0000 I5.0000 J0
G40 G01 X10.0000 Y-15.0000

G00 X10.0000 Y-15.0000
M74 L1 Q3
E1273 D3 M17
G41 G01 X15.0000 T0
G03 X5.0000 I-5.0000 J0
G03 X15.0000 I5.0000 J0
G40 G01 X10.0000 Y-15.0000

M07
G00 X32.0000 Y7.0000
M06

( -------- N0002 -------- )
M74 L2 Q1
G95 P0 Q25.0000 Z#5015
M71 S5.0000
E1271 D1 M17
G52 G41 G01 Y-2.0000 T4.
G01 X43.0000
G01 Y16.0000
G01 X21.0000
G01 Y-2.0000
G01 X31.5000
M00
G01 X32.0000
G40 G50 G01 X32.0000 Y7.0000 T0
M71 L1

G00 X32.0000 Y7.0000
M74 L2 Q2
G95 P0 Q25.0000 Z#5015
E1272 D2 M17
G51 G42 G01 Y-2.0000 T4.
G01 X21.0000
G01 Y16.0000
G01 X43.0000
G01 Y-2.0000
G01 X32.0000
G40 G50 G01 X32.0000 Y7.0000 T0

G00 X32.0000 Y7.0000
M74 L2 Q3
G95 P0 Q25.0000 Z#5015
E1273 D3 M17
G52 G41 G01 Y-2.0000 T4.
G01 X43.0000
G01 Y16.0000
G01 X21.0000
G01 Y-2.0000
G01 X32.0000
G40 G50 G01 X32.0000 Y7.0000 T0

M07
G00 X57.0000 Y-36.0000
M06

( -------- N0003 -------- )
M74 L3 Q1
G95 P0 Q25.0000 Z#5015
E1271 D1 M17
G41 G01 X66.0000 U-1.5000 P1
G01 Y-27.0000 U-1.5000 V0
G01 X48.0000 U1.5000 V0
G01 Y-45.0000 U1.5000 V0
G01 X57.0000 U0 V0
G01 X66.0000 U-1.5000 V0
G01 Y-37.0000 U-1.5000 V0
M00
G01 Y-36.0000 U-1.5000 V0
G40 G01 X57.0000 Y-36.0000 U0
G01 U0 V0

G00 X57.0000 Y-36.0000
M74 L3 Q2
G95 P0 Q25.0000 Z#5015
E1272 D2 M17
G42 G01 X66.0000 U-1.5000 P1
G01 Y-45.0000 U-1.5000 V0
G01 X57.0000 U0 V0
G01 X48.0000 U1.5000 V0
G01 Y-27.0000 U1.5000 V0
G01 X66.0000 U-1.5000 V0
G01 Y-36.0000 U-1.5000 V0
G40 G01 X57.0000 Y-36.0000 U0
G01 U0 V0

G00 X57.0000 Y-36.0000
M74 L3 Q3
G95 P0 Q25.0000 Z#5015
E1273 D3 M17
G41 G01 X66.0000 U-1.5000 P1
G01 Y-27.0000 U-1.5000 V0
G01 X48.0000 U1.5000 V0
G01 Y-45.0000 U1.5000 V0
G01 X57.0000 U0 V0
G01 X66.0000 U-1.5000 V0
G01 Y-36.0000 U-1.5000 V0
G40 G01 X57.0000 Y-36.0000 U0
G01 U0 V0

M07
G00 X-23.0000 Y-100.0000
M06

( -------- N0004 -------- )
M74 L4 Q1
G95 P0 Q25.0000 Z#5015
M71 S5.0000
E1271 D1 M17
G51 G41 G01 X-18.7574 Y-104.2426 T8.
G01 X-10.6256 Y-96.1109
G01 X-19.1109 Y-87.6256 T0
G01 X-35.3744 Y-103.8891 T-8.
G01 X-26.8891 Y-112.3744 T0
G01 X-19.1109 Y-104.5962 T8.
M00
G01 X-18.7574 Y-104.2426
G40 G50 G01 X-23.0000 Y-100.0000 T0
M71 L1

G00 X-23.0000 Y-100.0000
M74 L4 Q2
G95 P0 Q25.0000 Z#5015
E1272 D2 M17
G52 G42 G01 X-18.7574 Y-104.2426 T8.
G01 X-26.8891 Y-112.3744
G01 X-35.3744 Y-103.8891 T0
G01 X-19.1109 Y-87.6256 T-8.
G01 X-10.6256 Y-96.1109 T0
G01 X-18.7574 Y-104.2426 T8.
G40 G50 G01 X-23.0000 Y-100.0000 T0

G00 X-23.0000 Y-100.0000
M74 L4 Q3
G95 P0 Q25.0000 Z#5015
E1273 D3 M17
G51 G41 G01 X-18.7574 Y-104.2426 T8.
G01 X-10.6256 Y-96.1109
G01 X-19.1109 Y-87.6256 T0
G01 X-35.3744 Y-103.8891 T-8.
G01 X-26.8891 Y-112.3744 T0
G01 X-18.7574 Y-104.2426 T8.
G40 G50 G01 X-23.0000 Y-100.0000 T0

M07
G00 X-39.0000 Y-5.0000
M06

( -------- N0005 -------- )
M74 L5 Q1
G95 P0 Q25.0000 Z#5015
M71 S5.0000
E1271 D1 M17
G52 G41 G01 Y-11.0000 T9.
G01 X-35.0000
G03 X-33.0000 Y-9.0000 I0 J2.0000 G49 L2.0000
G01 Y-1.0000
G03 X-35.0000 Y1.0000 I-2.0000 J0 G49 L2.0000
G01 X-43.0000
G03 X-45.0000 Y-1.0000 I0 J-2.0000 G49 L2.0000
G01 Y-9.0000
G03 X-43.0000 Y-11.0000 I2.0000 J0 G49 L2.0000
G01 X-39.5000
M00
G01 X-39.0000
G40 G50 G01 X-39.0000 Y-5.0000 T0
M71 L1

G00 X-39.0000 Y-5.0000
M74 L5 Q2
G95 P0 Q25.0000 Z#5015
E1272 D2 M17
G51 G42 G01 Y-11.0000 T9.
G01 X-43.0000
G02 X-45.0000 Y-9.0000 I0 J2.0000 G49 L2.0000
G01 Y-1.0000
G02 X-43.0000 Y1.0000 I2.0000 J0 G49 L2.0000
G01 X-35.0000
G02 X-33.0000 Y-1.0000 I0 J-2.0000 G49 L2.0000
G01 Y-9.0000
G02 X-35.0000 Y-11.0000 I-2.0000 J0 G49 L2.0000
G01 X-39.0000
G40 G50 G01 X-39.0000 Y-5.0000 T0

G00 X-39.0000 Y-5.0000
M74 L5 Q3
G95 P0 Q25.0000 Z#5015
E1273 D3 M17
G52 G41 G01 Y-11.0000 T9.
G01 X-35.0000
G03 X-33.0000 Y-9.0000 I0 J2.0000 G49 L2.0000
G01 Y-1.0000
G03 X-35.0000 Y1.0000 I-2.0000 J0 G49 L2.0000
G01 X-43.0000
G03 X-45.0000 Y-1.0000 I0 J-2.0000 G49 L2.0000
G01 Y-9.0000
G03 X-43.0000 Y-11.0000 I2.0000 J0 G49 L2.0000
G01 X-39.0000
G40 G50 G01 X-39.0000 Y-5.0000 T0

M07
G00 X-79.0000 Y-32.0000
M06

( -------- N0006 -------- )
M74 L6 Q1
G95 P0 Q25.0000 Z#5015
M71 S5.0000
E1271 D1 M17
G52 G41 G01 Y-30.0000 T3.
G01 X-80.5000
G02 X-81.9383 Y-29.6327 I0 J3.0000
G02 X-83.5000 Y-27.0000 I1.4383 J2.6327
G01 Y-21.0000
G02 X-80.5000 Y-18.0000 I3.0000 J0
G01 X-71.5000
G02 X-68.5000 Y-21.0000 I0 J-3.0000
G01 Y-27.0000
G02 X-71.5000 Y-30.0000 I-3.0000 J0
G01 X-73.0000
G40 G50 G01 X-73.0000 Y-32.0000 T0
M71 L1

G00 X-73.0000 Y-32.0000
M74 L6 Q2
G95 P0 Q25.0000 Z#5015
E1272 D2 M17
G51 G42 G01 Y-30.0000 T3.
G01 X-71.5000
G03 X-68.5000 Y-27.0000 I0 J3.0000
G01 Y-21.0000
G03 X-71.5000 Y-18.0000 I-3.0000 J0
G01 X-80.5000
G03 X-83.5000 Y-21.0000 I0 J-3.0000
G01 Y-27.0000
G03 X-80.5000 Y-30.0000 I3.0000 J0
G01 X-79.0000
G40 G50 G01 X-79.0000 Y-32.0000 T0

G00 X-79.0000 Y-32.0000
M74 L6 Q3
G95 P0 Q25.0000 Z#5015
E1273 D3 M17
G52 G41 G01 Y-30.0000 T3.
G01 X-80.5000
G02 X-83.5000 Y-27.0000 I0 J3.0000
G01 Y-21.0000
G02 X-80.5000 Y-18.0000 I3.0000 J0
G01 X-71.5000
G02 X-68.5000 Y-21.0000 I0 J-3.0000
G01 Y-27.0000
G02 X-71.5000 Y-30.0000 I-3.0000 J0
G01 X-73.0000
G40 G50 G01 X-73.0000 Y-32.0000 T0

G00 X-73.0000 Y-32.0000
M74 L6 Q4
G95 P0 Q25.0000 Z#5015
M00 ( STOP BEFORE CUT-OFF )
M71 S5.0000
E1271 D1 M17
G52 G41 G01 Y-30.0000 T3.
G01 X-76.0000
G01 X-79.0000
G40 G50 G01 X-79.0000 Y-32.0000 T0
M71 L1

M07
G00 X-102.0000 Y3.0000
M06

( -------- N0007 -------- )
M74 L7 Q1
G95 P0 Q25.0000 Z#5015
M71 S5.0000
E1271 D1 M17
G52 G41 G01 Y5.0000 T0
G01 X-103.5000
G02 X-104.9383 Y5.3673 I0 J3.0000 G49 L3.0000 T3.
G02 X-106.5000 Y8.0000 I1.4383 J2.6327 G49 L3.0000
G01 Y14.0000
G02 X-103.5000 Y17.0000 I3.0000 J0 G49 L3.0000 T0
G01 X-94.5000
G02 X-91.5000 Y14.0000 I0 J-3.0000 G49 L3.0000 T-5.
G01 Y8.0000
G02 X-94.5000 Y5.0000 I-3.0000 J0 G49 L3.0000 T0
G01 X-96.0000
G40 G50 G01 X-96.0000 Y3.0000
M71 L1

G00 X-96.0000 Y3.0000
M74 L7 Q2
G95 P0 Q25.0000 Z#5015
E1272 D2 M17
G52 G42 G01 Y5.0000 T0
G01 X-94.5000
G03 X-91.5000 Y8.0000 I0 J3.0000 G49 L3.0000 T5.
G01 Y14.0000
G03 X-94.5000 Y17.0000 I-3.0000 J0 G49 L3.0000 T0
G01 X-103.5000
G03 X-106.5000 Y14.0000 I0 J-3.0000 G49 L3.0000 T-3.
G01 Y8.0000
G03 X-103.5000 Y5.0000 I3.0000 J0 G49 L3.0000 T0
G01 X-102.0000
G40 G50 G01 X-102.0000 Y3.0000

G00 X-102.0000 Y3.0000
M74 L7 Q3
G95 P0 Q25.0000 Z#5015
E1273 D3 M17
G52 G41 G01 Y5.0000 T0
G01 X-103.5000
G02 X-106.5000 Y8.0000 I0 J3.0000 G49 L3.0000 T3.
G01 Y14.0000
G02 X-103.5000 Y17.0000 I3.0000 J0 G49 L3.0000 T0
G01 X-94.5000
G02 X-91.5000 Y14.0000 I0 J-3.0000 G49 L3.0000 T-5.
G01 Y8.0000
G02 X-94.5000 Y5.0000 I-3.0000 J0 G49 L3.0000 T0
G01 X-96.0000
G40 G50 G01 X-96.0000 Y3.0000

G00 X-96.0000 Y3.0000
M74 L7 Q4
M00 ( STOP BEFORE CUT-OFF )
M71 S5.0000
E1271 D1 M17
G41 G01 Y5.0000 T0
G01 X-99.0000
G01 X-101.0000
M00
G01 X-102.0000
G40 G01 X-102.0000 Y3.0000
M71 L1

M07
G00 X-64.0000 Y-96.0000
M06

( -------- N0008 -------- )
M74 L8 Q1
M71 S1.0000
E1241 D0 M17
G01 X-63.9630 Y-95.9664
G03 X-64.0370 Y-96.0336 I-.0370 J-.0336
G03 X-63.9630 Y-95.9664 I.0370 J.0336
G01 Y-95.4630
G01 X-63.9263 Y-95.4263
G01 X-63.9630 Y-95.4630
G01 X-63.9918
G01 X-64.0370
G01 X-64.0737 Y-95.4263
G01 X-64.0370 Y-95.4630
G01 Y-96.5370
G01 X-64.0737 Y-96.5737
G01 X-64.0370 Y-96.5370
G01 X-63.9630
G01 X-63.9263 Y-96.5737
G01 X-63.9630 Y-96.5370
G01 Y-96.0336
G01 X-63.9500 Y-96.0000
G01 X-63.7130
G01 Y-95.2130
G01 X-63.6763 Y-95.1763
G01 X-63.7130 Y-95.2130
G01 X-64.2870
G01 X-64.3237 Y-95.1763
G01 X-64.2870 Y-95.2130
G01 Y-96.7870
G01 X-64.3237 Y-96.8237
G01 X-64.2870 Y-96.7870
G01 X-63.7130
G01 X-63.6763 Y-96.8237
G01 X-63.7130 Y-96.7870
G01 Y-96.0000
G01 X-63.4630
G01 Y-94.9630
G01 X-63.4263 Y-94.9263
G01 X-63.4630 Y-94.9630
G01 X-64.5370
G01 X-64.5737 Y-94.9263
G01 X-64.5370 Y-94.9630
G01 Y-97.0370
G01 X-64.5737 Y-97.0737
G01 X-64.5370 Y-97.0370
G01 X-63.4630
G01 X-63.4263 Y-97.0737
G01 X-63.4630 Y-97.0370
G01 Y-96.0000
G01 X-63.2130
G01 Y-94.7130
G01 X-63.1763 Y-94.6763
G01 X-63.2130 Y-94.7130
G01 X-64.7870
G01 X-64.8237 Y-94.6763
G01 X-64.7870 Y-94.7130
G01 Y-97.2870
G01 X-64.8237 Y-97.3237
G01 X-64.7870 Y-97.2870
G01 X-63.2130
G01 X-63.1763 Y-97.3237
G01 X-63.2130 Y-97.2870
G01 Y-96.0000
G01 X-62.9630
G01 Y-94.4630
G01 X-62.9263 Y-94.4263
G01 X-62.9630 Y-94.4630
G01 X-65.0370
G01 X-65.0737 Y-94.4263
G01 X-65.0370 Y-94.4630
G01 Y-97.5370
G01 X-65.0737 Y-97.5737
G01 X-65.0370 Y-97.5370
G01 X-62.9630
G01 X-62.9263 Y-97.5737
G01 X-62.9630 Y-97.5370
G01 Y-96.0000
G01 X-62.7130
G01 Y-94.2130
G01 X-65.2870
G01 Y-97.7870
G01 X-62.7130
G01 Y-96.0000
G01 X-63.9500
G01 X-64.0000

G00 X-64.0000 Y-96.0000
M74 L8 Q2
E1242 D4 M17
G41 G01 Y-98.0000 T0
G01 X-62.5000
G01 Y-94.0000
G01 X-65.5000
G01 Y-98.0000
G01 X-64.0000
G40 G01 X-64.0000 Y-96.0000

G00 X-64.0000 Y-96.0000
M74 L8 Q3
E1242 D5 M17
G42 G01 Y-98.0000 T0
G01 X-65.5000
G01 Y-94.0000
G01 X-62.5000
G01 Y-98.0000
G01 X-64.0000
G40 G01 X-64.0000 Y-96.0000

G00 X-64.0000 Y-96.0000
M74 L8 Q4
E1243 D6 M17
G41 G01 Y-98.0000 T0
G01 X-62.5000
G01 Y-94.0000
G01 X-65.5000
G01 Y-98.0000
G01 X-64.0000
G40 G01 X-64.0000 Y-96.0000
M07
M29
M30
%




( ESPRIT_POST WRITER QQ:385595504 )

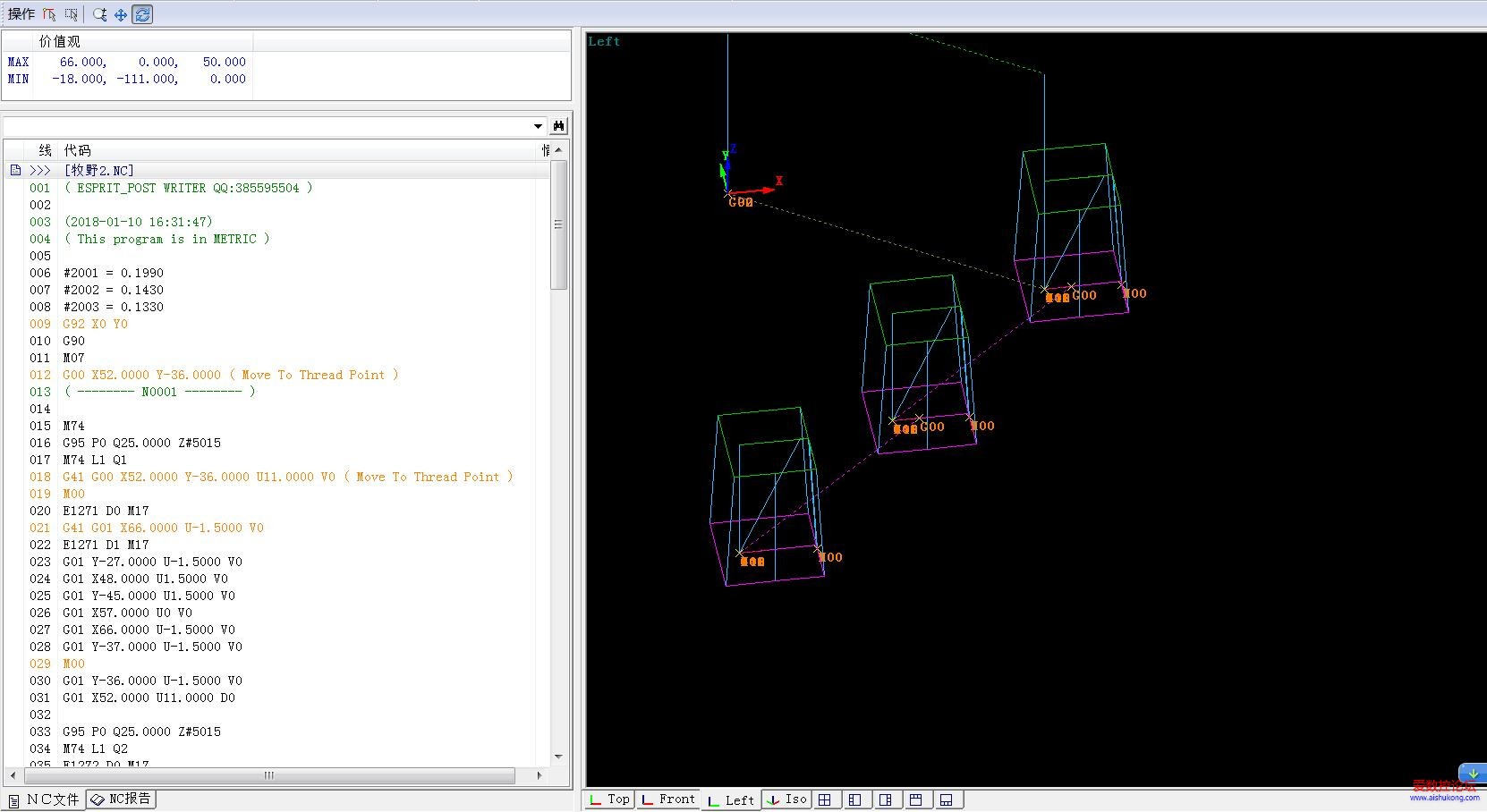

(2018-01-10 16:31:47)
( This program is in METRIC )

#2001 = 0.1990
#2002 = 0.1430
#2003 = 0.1330
G92 X0 Y0
G90
M07
G00 X52.0000 Y-36.0000 ( Move To Thread Point )
( -------- N0001 -------- )

M74
G95 P0 Q25.0000 Z#5015
M74 L1 Q1
G41 G00 X52.0000 Y-36.0000 U11.0000 V0 ( Move To Thread Point )
M00
E1271 D0 M17
G41 G01 X66.0000 U-1.5000 V0
E1271 D1 M17
G01 Y-27.0000 U-1.5000 V0
G01 X48.0000 U1.5000 V0
G01 Y-45.0000 U1.5000 V0
G01 X57.0000 U0 V0
G01 X66.0000 U-1.5000 V0
G01 Y-37.0000 U-1.5000 V0
M00
G01 Y-36.0000 U-1.5000 V0
G01 X52.0000 U11.0000 D0

G95 P0 Q25.0000 Z#5015
M74 L1 Q2
E1272 D0 M17
G42 G01 X66.0000 U-1.5000 V0
E1272 D2 M17
G01 Y-45.0000 U-1.5000 V0
G01 X57.0000 U0 V0
G01 X48.0000 U1.5000 V0
G01 Y-27.0000 U1.5000 V0
G01 X66.0000 U-1.5000 V0
G01 Y-36.0000 U-1.5000 V0
G01 X52.0000 U11.0000 D0

G95 P0 Q25.0000 Z#5015
M74 L1 Q3
E1273 D0 M17
G41 G01 X66.0000 U-1.5000 V0
E1273 D3 M17
G01 Y-27.0000 U-1.5000 V0
G01 X48.0000 U1.5000 V0
G01 Y-45.0000 U1.5000 V0
G01 X57.0000 U0 V0
G01 X66.0000 U-1.5000 V0
G01 Y-36.0000 U-1.5000 V0
G01 X52.0000 U11.0000 D0
G40 G00 X57.0000 Y-36.0000
( -------- N0002 -------- )

G95 P0 Q25.0000 Z#5015
M74 L2 Q1
M07
G41 G00 X19.0000 Y-69.0000 U11.0000 V0 ( Move To Thread Point )
M00
E1271 D0 M17
G41 G01 X33.0000 U-1.5000 V0
E1271 D1 M17
G01 Y-60.0000 U-1.5000 V0
G01 X15.0000 U1.5000 V0
G01 Y-78.0000 U1.5000 V0
G01 X24.0000 U0 V0
G01 X33.0000 U-1.5000 V0
G01 Y-70.0000 U-1.5000 V0
M00
G01 Y-69.0000 U-1.5000 V0
G01 X19.0000 U11.0000 D0

G95 P0 Q25.0000 Z#5015
M74 L2 Q2
E1272 D0 M17
G42 G01 X33.0000 U-1.5000 V0
E1272 D2 M17
G01 Y-78.0000 U-1.5000 V0
G01 X24.0000 U0 V0
G01 X15.0000 U1.5000 V0
G01 Y-60.0000 U1.5000 V0
G01 X33.0000 U-1.5000 V0
G01 Y-69.0000 U-1.5000 V0
G01 X19.0000 U11.0000 D0

G95 P0 Q25.0000 Z#5015
M74 L2 Q3
E1273 D0 M17
G41 G01 X33.0000 U-1.5000 V0
E1273 D3 M17
G01 Y-60.0000 U-1.5000 V0
G01 X15.0000 U1.5000 V0
G01 Y-78.0000 U1.5000 V0
G01 X24.0000 U0 V0
G01 X33.0000 U-1.5000 V0
G01 Y-69.0000 U-1.5000 V0
G01 X19.0000 U11.0000 D0
G40 G00 X24.0000 Y-69.0000
( -------- N0003 -------- )

G95 P0 Q25.0000 Z#5015
M74 L3 Q1
M07
G41 G00 X-14.0000 Y-102.0000 U11.0000 V0 ( Move To Thread Point )
M00
E1271 D0 M17
G41 G01 X0 U-1.5000 V0
E1271 D1 M17
G01 Y-93.0000 U-1.5000 V0
G01 X-18.0000 U1.5000 V0
G01 Y-111.0000 U1.5000 V0
G01 X-9.0000 U0 V0
G01 X0 U-1.5000 V0
G01 Y-103.0000 U-1.5000 V0
M00
G01 Y-102.0000 U-1.5000 V0
G01 X-14.0000 U11.0000 D0

G95 P0 Q25.0000 Z#5015
M74 L3 Q2
E1272 D0 M17
G42 G01 X0 U-1.5000 V0
E1272 D2 M17
G01 Y-111.0000 U-1.5000 V0
G01 X-9.0000 U0 V0
G01 X-18.0000 U1.5000 V0
G01 Y-93.0000 U1.5000 V0
G01 X0 U-1.5000 V0
G01 Y-102.0000 U-1.5000 V0
G01 X-14.0000 U11.0000 D0

G95 P0 Q25.0000 Z#5015
M74 L3 Q3
E1273 D0 M17
G41 G01 X0 U-1.5000 V0
E1273 D3 M17
G01 Y-93.0000 U-1.5000 V0
G01 X-18.0000 U1.5000 V0
G01 Y-111.0000 U1.5000 V0
G01 X-9.0000 U0 V0
G01 X0 U-1.5000 V0
G01 Y-102.0000 U-1.5000 V0
G01 X-14.0000 U11.0000 D0
G40 G00 X-9.0000 Y-102.0000
M07
M29
M30
%

de158168

有后处理吗

jamsona

请问一下楼主，你的那个图片中的模拟软件叫什么名字？

e3e43344zrj

求后处理

gb13579

牧野后处理。。。
牧野MC后处理.rar (138.24 KB, 下载次数: 35, 售价: 10 NC币)

2020-8-17 23:38 上传

点击文件名下载附件
牧野

002.NC (1014 Bytes, 下载次数: 570)

2020-8-17 23:36 上传

点击文件名下载附件

001.NC (741 Bytes, 下载次数: 556)

2020-8-17 23:36 上传

点击文件名下载附件

gb13579

e3e43344zrj 发表于 2019-12-21 04:23
求后处理

牧野MC后处理

gb13579

de158168 发表于 2019-6-5 00:01
有后处理吗

牧野MC后处理

偷得浮生

谢谢大佬，我也试试。

青木萧然

jesse2021

请问这是统赢牧野的后处理吗？
