后处理怎么在G42下面一行追加补正码

livelove19

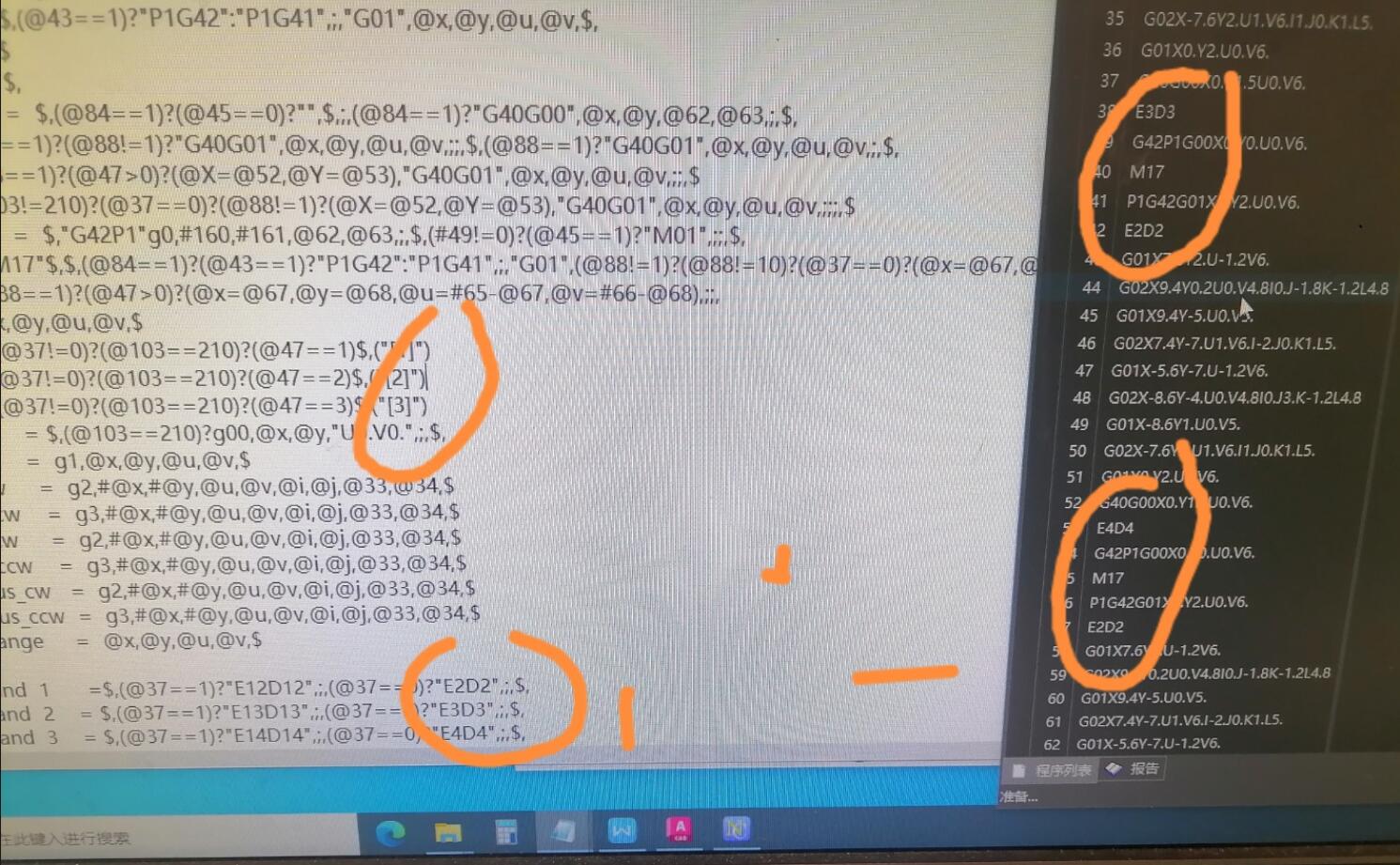

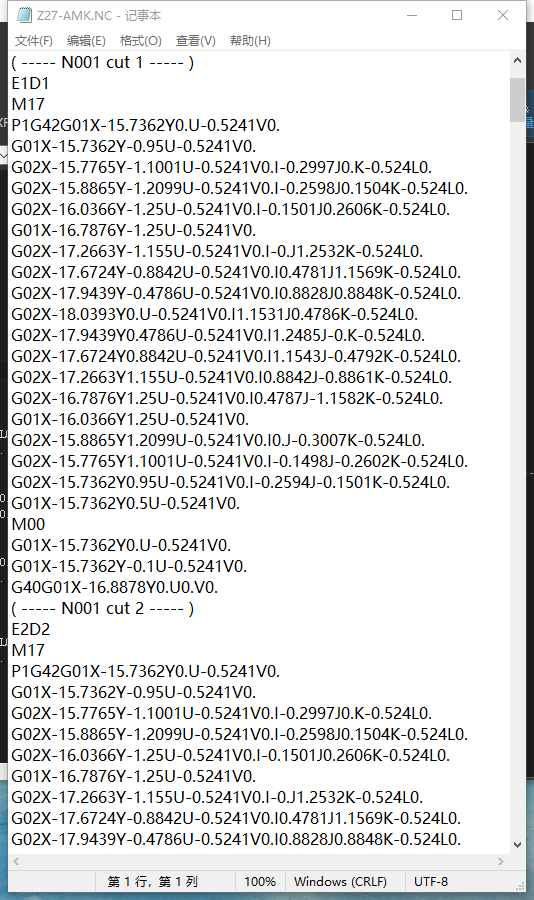

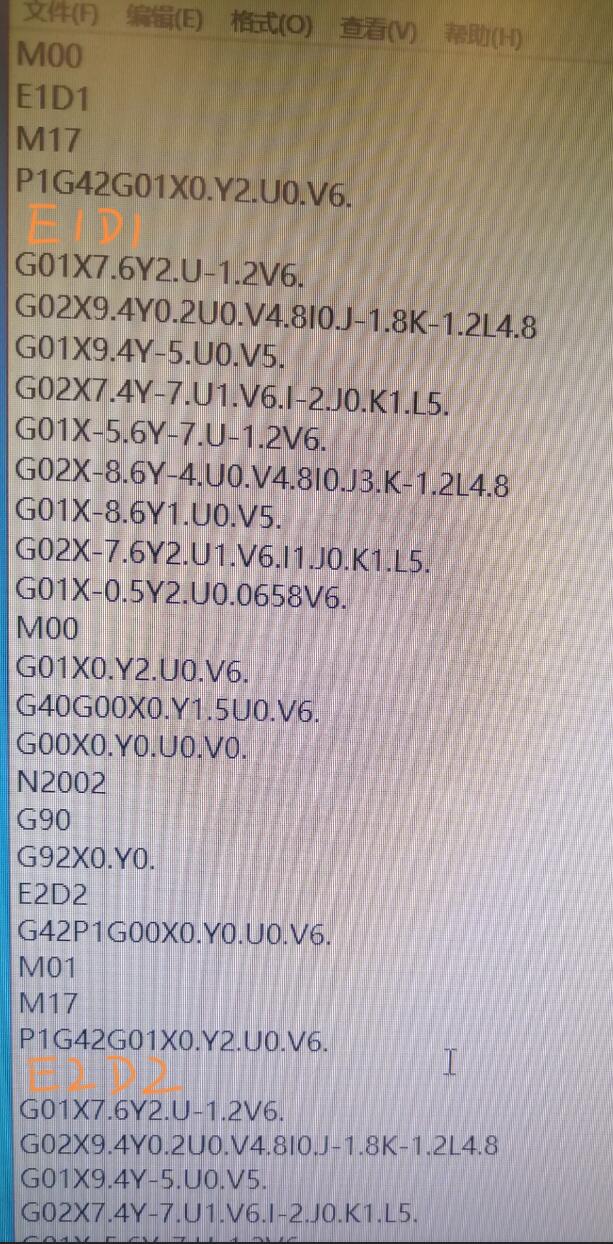

大佬们，我改了一个牧野的上下异形的后处理，现在必须在G42下面那一行追加补正码，（如下面图形所示）怎么搞都加不上，求大佬指点一下，怎么加上去,试着加了一下，结果不对

lxy609

3d_offset_left      = (@37==0)?"E1D1",;,(@37==1)?"E11D11";,$,"G90",$,$,"M17",$,"P1G41"
3d_offset_right     = (@37==0)?"E1D1",;,(@37==1)?"E11D11";,$,"G90",$,"M17",$,"P1G42",
3d_offset_left_0    = "M01","E1D1",$,"G90",$,"M17",$"P1G41",
3d_offset_right_0   ="M01",$,"E1D1",$,"M17",$"P1G42",
3d_offset_left_1    = (@37==0)?"E2D2",;,$,(@37==1)?"E12D12";$,"G90",,$,"M17",$,"P1G41"
3d_offset_right_1   = (@37==0)?"E2D2",;,$,(@37==1)?"E12D12";,$,"G90",$,"M17",$,"P1G42"
3d_offset_left_2    = (@37==0)?"E3D3",;,$,(@37==1)?"E13D13";$,"G90",,$,"M17",$,"P1G41",
3d_offset_right_2   =(@37==0)?"E3D3",;,$,(@37==1)?"E13D13";,$,"G90",$,"M17",$,"P1G42",
3d_offset_left_3    = (@37==0)?"E4D4",;,$,(@37==1)?"E14D14";,$,"G90",$,"M17",$,"P1G41",
3d_offset_right_3   = (@37==0)?"E4D4",;,$,(@37==1)?"E14D14";,$,"G90",$,"M17",$,"P1G42",
3d_offset_left_4       = $,"G90",$,"M17",$,"E5D5",,$,"P1G41",(@36=4),
3d_offset_right_4      = $,"G90",$,"M17",$,"E5D5",$,"P1G42",(@36=4)
3d_offset_left_5       = $,"G90",$,"M17",$,"E6D6",$,"P1G41",(@36=5)
3d_offset_right_5      = $,"G90",$,"M17",$,"E6D6",$,"P1G42",,(@36=5)
3d_offset_left_6       = $,"G90",$,"M17",$,"E7D7",$,"P1G41",,(@36=6)
3d_offset_right_6      = $,"G90",$,"M17",$, "E7D7",$,"P1G42",,(@36=6)
3d_offset_left_7       = $,"G90",$,"M17",$,"E8D8",$,"P1G41",,(@36=7)
3d_offset_right_7      = $,"G90",$,"M17",$, "E8D8",$,"P1G42",,(@36=7)
3d_offset_left_8       = $,"G90",$,"M17",$,"E9D9",$,"P1G41",,(@36=8)
3d_offset_right_8      = $,"G90",$,"M17",$,"E9D9",$,"P1G42",,(@36=8)
3d_offset_left_9       = $,"G90",$,"M17",$, "E10D10",$,"P1G41",,(@36=9)
3d_offset_right_9      = $,"G90",$,"M17",$, "E10D10",$,"P1G42",,(@36=9)

livelove19

lxy609 发表于 2025-4-18 14:53
3d_offset_left      = (@37==0)?"E1D1",;,(@37==1)?"E11D11";,$,"G90",$,$,"M17",$,"P1G41"
3d_offset_r ...

非常感谢，但是，还是不对，我是想把补正全部移到G42下面那一行，才行，不知道能不能移到下面那一行

489397517

livelove19 发表于 2025-4-18 15:39
非常感谢，但是，还是不对，我是想把补正全部移到G42下面那一行，才行，不知道能不能移到下面那一行 ...

移到下面那行就不对了吧，补正应该要在g42前

livelove19

489397517 发表于 2025-4-18 15:55
移到下面那行就不对了吧，补正应该要在g42前

就是要到下面一行才是行，上面加别的

489397517

livelove19 发表于 2025-4-18 16:04
就是要到下面一行才是行，上面加别的

那就不知道了，我一直都是补正条件在前面

livelove19

489397517 发表于 2025-4-18 16:15
那就不知道了，我一直都是补正条件在前面

我是想弄斜进斜出，你这个能转斜进斜出不？

489397517

livelove19 发表于 2025-4-18 16:39
我是想弄斜进斜出，你这个能转斜进斜出不？

应该不行吧，没用过

zwq8629

我的可以

fkuefqpvfhvk

3d_offset_left      = (@37==0)?"E1",;,(@37==1)?"E11";,$,"G90",$,$,"M17",$,"P1G41",,$,(@37==0)?"D1",;,(@37==1)?"D11";
